Water heater combi 600/150-1500/300 KSC1 - with coil View full size

Water heater combi 600/150-1500/300 KSC1 - with coil

BURNiT

1 557,60 € tax incl.

Options

Capacity : 600/150, 800/200, 1000/ 220, 1500/300L

One coil

To produce and accumulate domestic hot water (DHW) and hot water for space-heating system. Allows utilization of up to three external heat sources and an optional electric heating element.

Made in Europe

Available on order

More details

More info

Combi KSC 1 BURNiT

Combi tank KSC BURNiT - with one coil

To produce and accumulate domestic hot water (DHW) and hot water for space-heating system. Tank-in-Tank construction - DHW tank protected with titanium enamel and anode + Buffer tank powering space-heating system.
Allows utilization of up to three external heat sources and an optional electric heating element.






Modifications and sizes, Liters :

600/150,  800/200,  1000/ 220,  1500/300



Product features:

  • Removable High efficiency insulation with thickness 100 mm and outer casing of PVCwith RAL9006 color
  • Multi-position mounting of temperature sensor
  • Complex corrosion protection of DHW (domestic hot water) tank realized by means of titanium enamel and two anode protectors
  • All threads are internal
  • Easy installation
  • Heat exchanger coil enables the unit to work with different heat sources
  • Optional kit for electric heating with nominal power 3kW; 4.5kW












Efficacity énergétique

Energy Efficiency Directive 2010/30 /EU,
Regulation 812/2013:

Class Е - capacity from 600 to 1500 Liters.

Warranty : 3 years

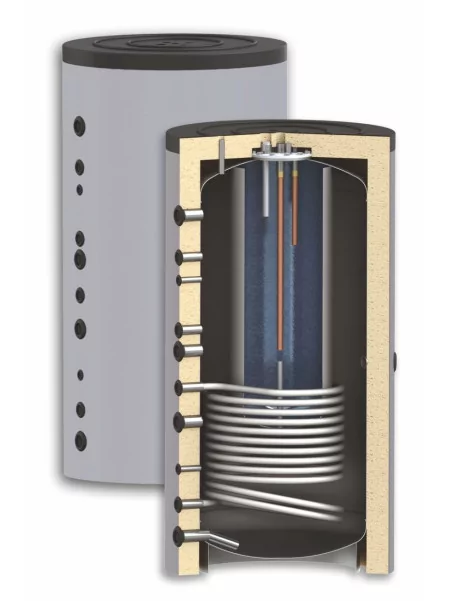

Combi tank open



1. Aesthetic PVC jacket with color RAL 9006
2. Insulation
3. Water tank of low-carbon steel
4. DHW tank made of low carbon steel coated with titanium enamel (DIN 4753-3)
5. Anode protector (DIN 4753-6)
6. Safety valve, 8 bar
7. Heat exchanger coil S1




Technical specification:

Scheme combi tank KSC 1









KSC 1
600/150800/2001000/2201500/300
CapacityL60080010001500
Buffer capicity / DHW tank capacityL450/150600/200780/2201200/300
Height Hmm1880191020902220
Min. vertical clearancemm1970202021852375
Diameter D without / with insulationmmø 650 / 850ø 790 / 990ø 790 / /990ø 1000 / 1200
Lower heat exchanger coil S1
Heat exchange surface1.72.93.03.4
Coil capacityL10.517.918.521.0
Operating pressure / max. coil temperaturebar/°C16/11016/11016/11016/110
Operating pressure / max. buffer temperaturebar/°C3/953/953/953/95
Operating pressure /  max DWH tank temperaturebar/°C10/9510/9510/9510/95
Recommended boiler size, connected to the bufferkW10-1715-2718-3327-50
ThermometerOptional
Electric heater (optional)kW3/4.53/4.53/4.53/4.5
Weightkg184213241428
Sensor sleeveA, mm G½"440570580875
Electric heating element (optional)B, mm G1½"86092011301130
Sensor sleeveC, mm G½"1440129015001700
Air vent sleeveD, mm G½"1880191020902220
Boiler heat carrier inlet/ sleeveE, mm G1½"1550157317421808
SleeveF, mm G1"1300139015201635
Sensor sleeveG, mm G½"1150129014501525
Boiler heat carrier / sleeveH, mm G1½"   1305
Heat carrier outletI, mm G1"1020107211721225
Boiler heat carrier / sleeveJ, mm G1½"91098010601130
SleeveK, mm G½"   975
Lower coil inlet S1L, mm G1"800820880895
Boiler heat carrier / sleeveM, mm G1½"650670730765
Sensor sleeveN, mm G½"490465495520
Lower coil outlet S1O, mm G1"280310310375
Boiler heat carrier / sleeveP, mm G1½"150170170235
RecirculationQ, mm 3/4"1880191020902220
DHW tankHot water outletR, mm G1"1880191020902220
Air vent sleeveS, mm G½"1880191020902220
Cold water inletT, mm G1"1880191020902220
Anode protectorsU1 mm G1¼"1880191020902220
U2 mm G1¼"850607647881
