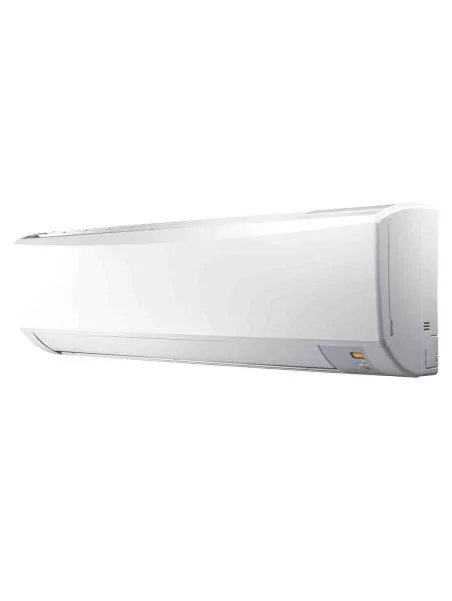

Split Wall Air Conditioner 2.6 to 6.4kW reversible inverter Mistral

With its modern and linear line that fits perfectly into every interior, the new CHANGE air conditioner suits in every place. The different powers of the CHANGE air conditioner offer a solution for any room up to 50 m².

Logo Mistral

More info

More details

859,10 € tax incl.

Options

Add to cart

By buying this product you can collect up to 146 loyalty points. Your cart will total 146 points that can be converted into a voucher of 43,80 €.


More info

Air conditioner Mistral

" Modern, silent, stable: a perfect solution by Mistral ! "

With its modern and linear line that fits perfectly into every interior, the new CHANGE air conditioner suits in every place. The split design is perfect for homes or offices, as the indoor unit takes only a small place on the wall. The different powers of the CHANGE air conditioner offer a solution for any room up to 50 m². The INVERTER compressor has a variable power and can thus maintain an internal temperature with a deviation of max. 0.5 ° C from the setpoint temperature, unlike the ON / OFF compressors. This stable temperature level and the silent operation of the compressor provide maximum comfort. Thanks to the INVERTER compressor, the CHANGE air conditioners can operate in hot mode up to -15 ° C outside, which offers a considerable energy gain to heat all the rooms.

  • Electronic control with infrared remote control

  • Temperature adjustable from 16 to 30 ° C

  • Available modes: automatic, cooling, heating, dehumidification and ventilation

  • Complete set of functions: timer, sleep, turbo, auto-diagnostic, locking, intelligent defrost and economical mode

  • Automatic restart in case of power failure


Spécifications techniques

GWH09KF312KF318KG324KG3
Refrigeration capacity *W2600350052756450
Power consumption max *W1420142024502650
Absorbed current *A3.85.17.439.7
SEE (Seasonal Energy Efficiency) *5.6 (A+)5.6 (A+)5.6 (A+)5.6 (A +)
Heating capacity **W2800380055707000
Power consumption max. **W1550155026002800
Intensity absorbed **A4.04.97.810.5
SCOP (Seasonal Performance Coefficient)**3.11 (A)3.11 (A)3.11 (A)3.11 (A)
Indoor unit
Dehumidificationl/h0.81.41.82.1
Air flow rate maxm³/h6006808001000
Sound power leveldB55/52/44/3856/53/45/3960/55/51/4661/57/52/49
Sound pressure leveldB(A)41/38/30/2442/39/31/2549/44/40/3551/47/42/39
Weight (l x h x p)mm770x283x201770x283x201867x305x2151007x315x219
Poidskg891214
Outdoor unit
Sound power level ***dB62636568
Sound pressure level ***dB(A)51535558
Dimensions (l x h x p)mm776x540x320776x540x320963x700x3961000x790x427
Weightkg282950.255.5
Power supplyV/Ph/Hz230/1/50 + T230/1/50 + T230/1/50 + T230/1/50 + T
Starting currentA20202525
Liquid Line Diameter" (mm)1/4 (6,35)1/4 (6,35)1/4 (6,35)1/4 (6,35)
Gas line diameter" (mm)3/8 (9,52)3/8 (9,52)1/2 (12)5/8 (16)
Refrigerant chargekg0.70.851.31.8
Difference max. Of level ****m10101010
Length max. Of pipes****m15202525
Length max. refrigerant connection with standard loadm5555
Additional chargeg/m20202050

* : Nominal cooling capacity based on: inside 27 ° C BS, 19 ° C BH for 50% RH; Outside 35 ° C BS, 24 ° C BH for 40% RH
** : Nominal heat output based on: indoor 20 ° C BS, 19 ° C BH for 60% RH; Outside 7 ° C BS, 6 ° C BH for 80% RH
*** : Levels of power and sound pressure measured at 1m from the center of the device
**** : Distances and level differences between units are in linear meter.
