Buffer tank150 or 200L PS1 without coil

Buffer tank150 or 200L PS1 without coil View full size

This compact water heater is available with 150 or 200L.

Accumulating the heat generated by boiler, the buffer tank BURNiT PS without coil is recommended for each space-heating system.

Made in Europe

Available on order

More info

More details

528,00 € tax incl.

Options

Add to cart

By buying this product you can collect up to 54 loyalty points. Your cart will total 54 points that can be converted into a voucher of 16,20 €.


More info

Accumulating the heat generated by boiler, the buffer tank BURNiT PS without coil is recommended for each space-heating system. Ensures optimum operating mode of biomass boiler, permitting its functioning at nominal power output even when the heating system does not need all the heat energy produced thereby.
Produced heat is accumulated and stored inside the buffer tank and can be used even when the boiler itself has cooled down.


Modifications and sizes, L:
150, 200


Product  features :

  • Compact dimensions.
  • High efficiency insulation with thickness 50 mm  and outer casing of PVC with RAL 9006 color.
  • Multi-position mounting of temperature sensor
  • All threads are internal
  • Inlet/Outlet arrangement -100 angle degrees
  • Easy installation.
  • Optional kit for electric heating with nominal power 3kW;


Energy efficiency buffer tank PS
Energy Efficiency Directive 2010/30 /EU,
Regulation 812/2013:
Class C / E capacity from 150 to 200  Liters;

Warranty : 3 years

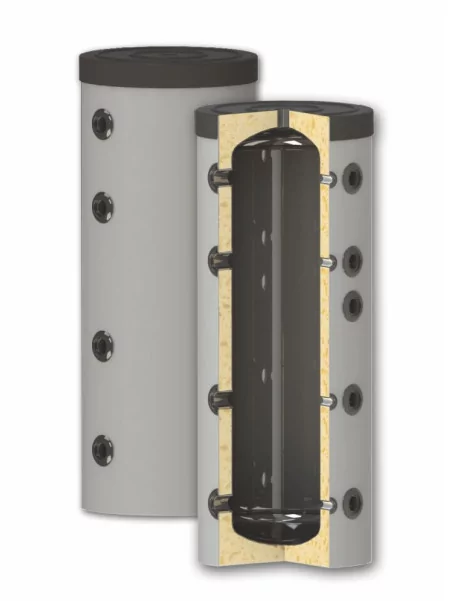

Buffer tank PS open
1. Aesthetic PVC jacket with color RAL 9006
2. Highly efficient  thermal insulation
3. Water tank of low-carbon steel



Technical specifications:

Chart buffer tank PS







PS150
200
CapacityL150200
Diameter D without ø / with insulation ømm400 / 500400 / 500
Height H without / with insulationmm13101710
Min. vertical clearancemm14001780
Operating pressurebar33
Max. buffer temperature°C9595
Recommended boiler size, connected to the bufferkW6-106-10
Thermometeroption
PVC coating with insulation (optional)100 mm rigid PU
Weight buffer /insulationkg5674
ConnectionA1, G1½" mm185185
Sensor sleeveA3, G½" mm185185
ConnectionA4, G1½" mm185185
ConnectionB1, G1½" mm485725
Sensor sleeveB2, G1½" mm485725
ConnectionB3, G½" mm485725
Lower coil inletC G1" mm705945
Electric heating elementD G1½" mm755995
Upper coil inletE, G1" mm8051045
ConnectionF1, G1½" mm8851165
Sensor sleeveF2, G½" mm8851165
ConnectionF3, G1½" mm8851165
Sensor sleeveG3, G½" mm11251525
ConnectionG4, G1½" mm11251525
ConnectionJ, G1½" mm13101710
