Buffer tank 300 to 2000L PR with one coil

Buffer tank 300 to 2000L PR with one coil View full size

Capacity : 300 à 2000L

One coil

Accumulating the heat generated by boiler, the buffer tank BURNiT PR is recommended for each space-heating system.

Made in Europe

Available on order

More info

More details

748,00 € tax incl.

Options

Add to cart

By buying this product you can collect up to 148 loyalty points. Your cart will total 148 points that can be converted into a voucher of 44,40 €.


More info

Accumulating the heat generated by boiler, the buffer tank BURNiT PR with one coil is recommended for each space-heating systemEnsures optimum operating mode of biomass boiler, permitting its functioning at nominal power output even when the heating system does not need all the heat energy produced thereby.
Produced heat is accumulated and stored inside the buffer tank and can be used even when the boiler itself has cooled down.


Modifications and sizes, L:
300, 500, 800, 1000, 1500, 2000



Product  features:

  • Removable high efficiency insulation with thickness 100 mm and outer casing of PVC with RAL 9006 color
  • Multi-position mounting of temperature sensor
  • Primer coated on the outside of the tank
  • Heat exchanger coil
  • All threads are internal
  • Inlet / Outlet connections - at 180 angle degrees
  • Easy installation.
  • Optional kit for electric heating with nominal power  3kW, 4.5kW, 6kW or 7.5kW




Energy efficiency buffer tank PR
Energy Efficiency Directive 2010/30 /EU,
Regulation 812/2013:
Class E - capacity from 300 to 500 Liters;
Class Е - capacity from 800 to 1000 Liters;

Warranty : 3 years

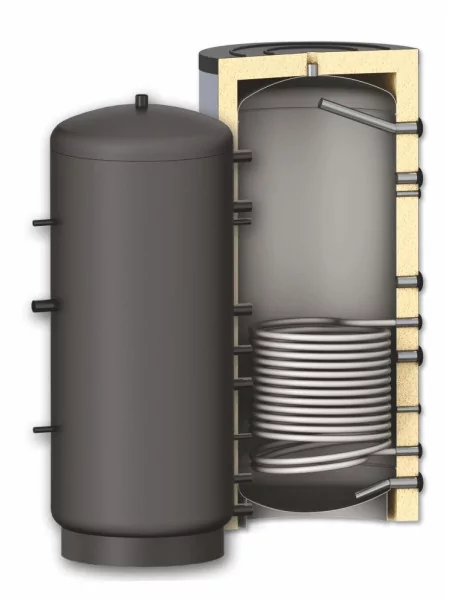

Buffer tank PR open
1. Aesthetic PVC jacket with color RAL 9006
2. Primer coated outer surface
3. Removable insulation
4. Water tank of low-carbon steel
5. Lower coil S1




Technical specifications:
Buffer tank PR chart







PR300500800100015002000
CapacityL300500800100015002000
Diameter D without insulation / with insulationø mm550 / 750650 / 850790 / 990790 / 9901000 / 12001200 / 14000
Height H without insulation / with insulationmm1410 / 14601610 / 16601860 / 19102040 / 20902150 / 22202132 / 2182
Min. vertical clearancemm143016401900207522202220
Lower heat exchange coil S1
Heat exchange surface1.01.72.93.03.44.0
Coil capacityL6.210.517.918.52124.6
Operating pressure of the coilbar161616161616
Max. coil temperature°C110110110110110110
Operating pressure of the buffer tankbar333333
Max. buffer temperature°C959595959595
Recommended boiler size, connected to the bufferkW6-1010-1715-2718-3327-5036-67
Thermometeroptional
Coating with insulation (optional)100 mm soft PU
Weight bufferkg6090118133206273
Weight insulationkg9.512.316.41823.226.5
Sensor sleeveA, mm G½"410410570580875920
Electric heating elementB, mm G1½"760790920113011301170
Sensor sleeveC, mm G½"106011201290150015001645
Air vent sleeveD, mm G1½"141016101860204021502132
Boiler heat carrier inletE, mm G1½"117013701573174218081775
Heat carrier inletF, mm G1½"//139015201635/
Sensor sleeveG, mm G½"101011201290145015251625
Boiler heat carrierH, mm G1½"880990//13051420
Boiler heat carrierJ, mm G1½"770880980106010851170
Additional sleeveK, mm    G½" / 975
Heat carrier inletL, mm G1"660770820880895980
Boiler heat carrierM, mm G1½"540620670730765735
Sensor sleeveN, mm G½"420460465495520500
Heat carrier outletO, mm G1"260250310310375380
Boiler heat carrier outletP, mm G1½"150150170170235230
