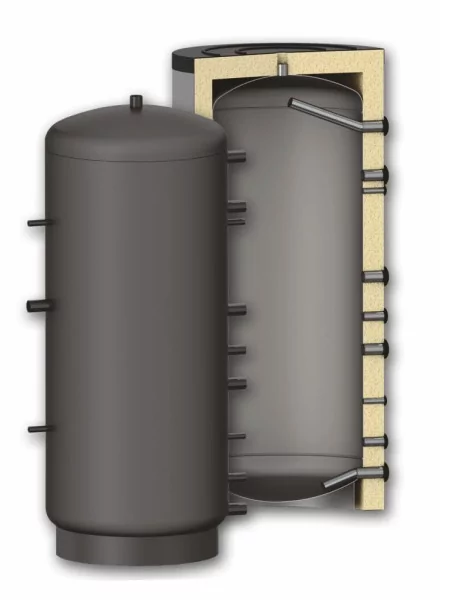

Buffer tank 300 to 2000L P without coil View full size

Buffer tank 300 to 2000L P without coil

BURNiT

649,00 € tax incl.

Options

Capacity : 300 to 2000L

Accumulating the heat generated by boiler, the buffer tank BURNiT P recommended for each space-heating system.

Made in europe

Available on order

More details

More info

Accumulating the heat generated by boiler, the buffer tank BURNiT P without coil is recommended for each space-heating system. Ensures optimum operating mode of biomass boiler, permitting its functioning at nominal power output even when the heating system does not need all the heat energy produced thereby.

Produced heat is accumulated and stored inside the buffer tank and can be used even when the boiler itself has cooled down.


Modifications and sizes, L:
300, 500, 800, 1000, 1500, 2000, 2500, 3000, 5000



Product  features:

  • Removable high efficiency insulation with thickness 100 mm and outer casing of PVC with RAL 9006 color
  • Multi-position mounting of temperature sensor
  • Primer coated on the outside of the tank
  • All threads are internal
  • Inlet / Outlet connections - at 180 angle degrees
  • Easy installation
  • Optional kit for electric heating with nominal power  3kW, 4.5kW, 6kW or 7.5kW




Energy efficiency buffer tank P
Energy Efficiency Directive 2010/30 /EU,
Regulation 812/2013:

Class E - capacity from 300 to 500 Liters;
Class Е - capacity from 800 to 1000 Liters;

Warranty : 3 years

Buffer tank P open
1. Aesthetic PVC jacket with color RAL 9006
2. Primer coated outer surface
3. Removable insulation
4. Water tank of low-carbon steel






Technical specifications:
Buffer tank P chart

P300500800100015002000
CapacityL300500800100015002000
Diameter D without insulation / with insulationø mm550 / 750650 / 850790 / 990790 / 9901000 / 12001200 / 14000
Height H without insulation / with insulationmm1410 / 14601610 / 16601860 / 19102040 / 20902150 / 22202132 / 2182
Min. vertical clearancemm143016401900207522202220
Operating pressurebar333333
Max. buffer temperature°C959595959595
Recommended boiler size, connected to the bufferkW6-1010-1715-2718-3327-5036-67
Thermometeroptional
Coating with insulation (optional)100 mm soft PU
Weight bufferkg6090118133206273
Weight insulationkg9.512.316.41823.226.5
Sensor sleeveA, mm G½"410410570580875920
Electric heating elementB, mm G1½"760790920113011301170
Sensor sleeveC, mm G½"106011201290150015001645
Air vent sleeveD, mm G1½"141016101860204021502132
Boiler heat carrier inletE, mm G1½"117013701573174218081775
Heat carrier inletF, mm G1½"//139015201635/
Sensor sleeveG, mm G½"101011201290145015251625
Boiler heat carrierH, mm G1½"880990//13051420
Boiler heat carrierJ, mm G1½"770880980106010851170
Additional sleeveK, mm    G½" / 975
Heat carrier inletL, mm G1"660770820880895980
Boiler heat carrierM, mm G1½"540620670730765735
Sensor sleeveN, mm G½"420460465495520500
Heat carrier outletO, mm G1"260250310310375380
Boiler heat carrier outletP, mm G1½"150150170170235230
