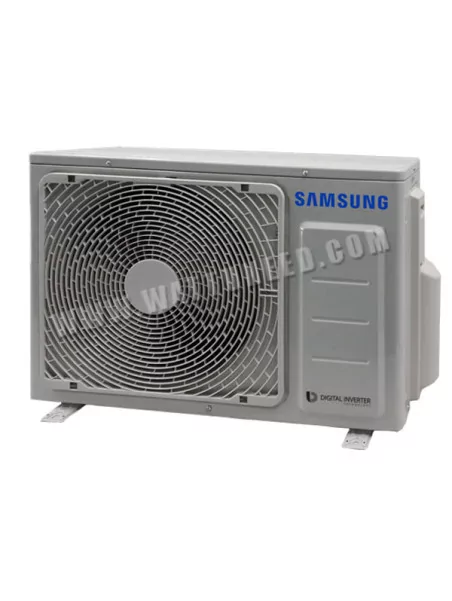

Samsung R410A refrigerant outdoor unit - 5kW View full size

Samsung R410A refrigerant outdoor unit - 5kW

Samsung

2 335,30 € tax incl.

AJ050MCJ2EH/EU



  • Outdoor unit single-fan
  • Compressor Twin BLDC
  • Controller by sinusoidal wave
  • Insulation compressor sound
  • setting up easy
  • WiFi control by smartphone or tablet (optional)
  • High energy label for cooling (A) and heating (A-)



More details

More info

Samsung R410A 5kW outdoor unit

  • Outdoor unit single-fan
  • Compressor Twin BLDC
  • Controller by sinusoidal wave
  • Insulation compressor sound
  • setting up easy
  • WiFi control by smartphone or tablet (optional)

SAMSUNG's AJ050MCJ4EH/EU 5.0 kW exterior unit connects up to 2 interior units.
This is compatible with all the interior units of the brand (murals, consoles, cassettes or gainable).



SAMSUNG's Multi-Split exterior units are equipped with a compressor Twin BLDC whose moving parts are stabilized, allowing a reduction in torque variations of around 70% compared to the compressor BLDC simple classic.
In addition, they are equipped with the latest sine wave controller that reduces the overall noise level and guarantees better acoustic quality.






Effective air conditioning for small spaces



This heating and cooling system is optimized for residences and small buildings. Its lightweight, compact design and automatic address make it easy and economical to install.












High performance and longevity



Thanks to its compressor technology, Samsung's FJM exterior unit delivers high performance and high reliability. The FJM system is fully compliant with the new European regulations.












Less noise for comfort



With superior insulation and reduced vibrations, the FJM system ensures a calm environment. You will not be disturbed by the noise levels typical of conventional heating and cooling systems.






Characteristics



model Outdoor unitAJ50MCJ2EH/EU
tensionLive/♯/V/Hz1.2,220/240.50
performance AbilitycoolingKw5
heating5.7
Hot power returned to -10oC ext.Kw3.66
powerNumber of units int. Maxi connection2
Maximum connection rate135.00%
Absorbed powercoolingKw1.32
heating1.35
Nominal intensitycoolingHas6th
heating6.2
Energy efficiency coolingW/W3.79
heatingW/W4.22
SEER (Grade)W/W6.4
Indicative annual energy consumption (cooling)kWh/a274
SCOP (grade)W/W4.01
Indicative annual energy consumption (heating)kWh/a1,467
CompressortypeTwin BLDC Rotary Inverter
fanAirflowm3/hour1,986
Fan engineModelBLDC
Output x nW40x1
Pipeline connectionsLiquid pipingLive number, inch x number1/4'x2
Gas pipingLive number, inch x number3/8'x1 - 1/2'x1
Installation optionsMaximum lengthTotalm30
Ue/Uim20
Maximum heightUe/Uim15
Ui/Uim7.5
Wiring connectionscommunicationMinimummm20.75
Communication protocol Rs485
fuseA/slow20
Feeding wires Ui/Ue3Ue
Communication wires Ui/Ue3/2
RefrigeranttypeR410a
Preloaded Refensive Kg1.6
tCO2e3.34
soundAcoustic pressure coolingdB(A)46th
heating47th
Acoustic powerdB(A)61
Dimensions (mm)weightKg36.4
Dimension (LxHxP)Mr790x548x285
Operating rangecooling -5/46
heating-15/2

Specifications

Weight36,4 kg
Width790 mm
Height548 mm
Thickness285 mm
