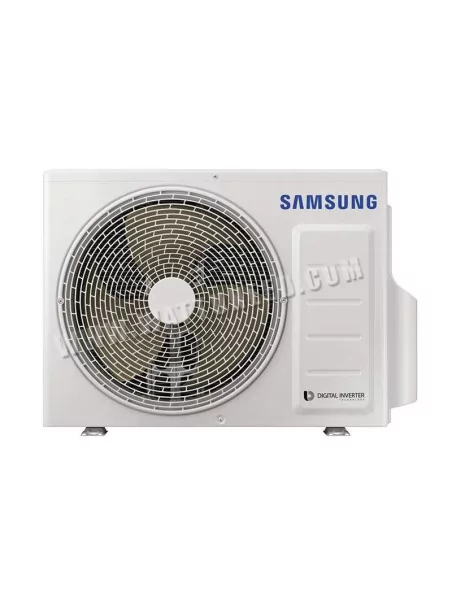

Samsung R32 5kW refrigerant outdoor unit View full size

Samsung R32 5kW refrigerant outdoor unit

Samsung

2 335,30 € tax incl.

AJ050NCJ2EG/EU

High energy label for cooling (A) and heating (A-)

Heating up to -15degrees



More details

More info

Samsung R32 5kW refrigerant outdoor unit

 Samsung's Free Joint Multi (FJM) system combines efficiency and reliability to deliver exceptional performance with a compact design.








Effective air conditioning for small spaces



This heating and cooling system is optimized for residences and small buildings. Its lightweight, compact design and automatic address make it easy and economical to install.














High performance and longevity



Thanks to its compressor technology, Samsung's FJM exterior unit delivers high performance and high reliability. The FJM system is fully compliant with the new European regulations.










Less noise for comfort

With superior insulation and reduced vibrations, the FJM system ensures a calm environment. You will not be disturbed by the noise levels typical of conventional heating and cooling systems.








Characteristics



model Outdoor unitAJ050NCJ2EG/EU
tensionLive/♯/V/Hz1.2,220/240.50
performance AbilitycoolingKw5
heating5.6
Hot power returned to -10oC ext.Kw3.6
powerNumber of units int. Maxi connection2
Maximum connection rate135.00%
Absorbed powercoolingW1220
heating1280
Nominal intensitycoolingHas5.6
heating5.9
Energy efficiency EER (SEER)cooling4.1 (8.5)
Indicative annual energy consumption (cooling)kWh/a205
COP (SCOP)heating4.38 (4.6)
Indicative annual energy consumption (heating)kWh/a1270
Energy label (Cooling)W/WA.
Energy label (Heating)W/WA
CompressortypeTwin BLDC Rotary Inverter
fanAirflowm3/hour1983
Pipeline connectionsLiquid pipingLive number, inch x number1/4'x2
Gas pipingLive number, inch x number3/8 ''x2
Installation optionsTotal maxi lengthm30
Maxi length between Ue/Ui (Ue/Ui)m25
Maximum height between Ui (Ui/Ui)m7.5
Maximum height (Ue/Ui)m15
Wiring connectionscommunicationMinimummm20.75
fuseA/slow20
Feeding wires Ui/Ue3Ue
Communication wires Ui/Ue3/2
RefrigeranttypeR32
Preloaded Refensive Kg1.18
tCO2e0.8
soundAcoustic pressure coolingdB(A)46th
heating47th
Acoustic powerdB(A)61
Dimensions (mm)weightKg33
Dimension (LxHxP)Mr790x548x285
Operating rangecooling -5/46
heating-15/24

Specifications

Weight33 kg
Width790 mm
Height548 mm
Thickness285 mm
