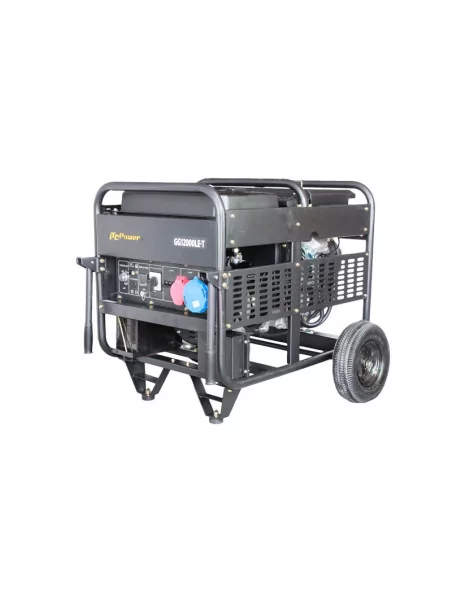

Generator set 9kkW dual-voltage dry contact GG12000LE-T

Wattuneed

4 014,78 € tax incl.

9V / 11.3kVA four-stroke OHV four-stroke gasoline generator with remote control and large tank and dry contact.

More details

More info

GG12000LE-T

9V / 11.3kVA four-stroke OHV four-stroke gasoline generator with remote control and large tank and dry contact.

Guaranteed 3 years or 300H by the manufacturer.

Its advantages :

  • Tubular frame
  • AVR (automatic voltage regulation +/- 1.5%)
  • Lack of oil safety with immediate engine shutdown
  • Control panel: 2 mono jacks, 1 12V output, Horameter, Frequency meter, Voltmeter (LED4), Thermal circuit breaker
  • Big tank
  • Electric start with key
  • OHV 4-stroke engine: The valves are arranged on the cylinder head, allowing a better gas flow and a better compression ratio.

Delivered without oil and without fuel in accordance with the transport

Frequency50 Hz
Rated power KW11.3
Max power KW12.5
Voltage400V
Amperage

17.2A

Sockets
ControllerLED4
Output 12V8.3Amp
Battery (Ah)36
Engine typeIC680E
Cylinder capacity (Cc)678
Oil Capacity (L)1.5
Tank (L)28
CV at 3000 rpm20
Autonomy at 100% load (h)6
Sound level dB (A) at 7 meters79
StartElectrical
AVRYes
Length mm930
Width mm620
Height mm706
Gross weight kg172
Net weight kg195

Specifications

Monophasé / TriphaséMonophasé, Triphasé
