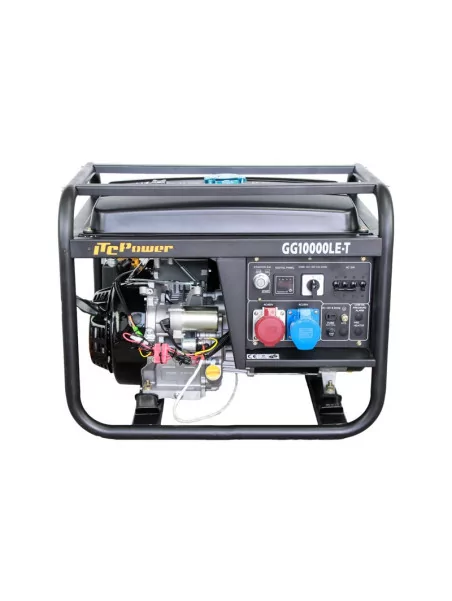

Generator set 7.5kkW dual-voltage dry contact GG10000LE-T

Wattuneed

2 101,77 € tax incl.

7.5kW / 9.4kVA four-stroke OHV four-stroke gasoline generator with large tank and dry contact.

More details

More info

GG10000LE-T

7.5kW / 9.4kVA four-stroke OHV four-stroke gasoline generator with large tank and dry contact.

Guaranteed 3 years or 300H by the manufacturer.

Its advantages :

  • Tubular frame
  • AVR (automatic voltage regulation +/- 1.5%)
  • Lack of oil safety with immediate engine shutdown
  • Control panel: 2 mono jacks, 1 12V output, Horameter, Frequency meter, Voltmeter (LED4), Thermal circuit breaker
  • Big tank
  • Electric start with key
  • OHV 4-stroke engine: The valves are arranged on the cylinder head, allowing a better gas flow and a better compression ratio.

Delivered without oil and without fuel in accordance with the transport

Frequency50 Hz
Rated power KW8
Max power KW8.8
Voltage400V
Amperage11 A
Sockets1x16A3~
ControllerLED4
Output 12V8.3Amp
Battery (Ah)14
Engine typeIC425
Cylinder capacity (Cc)420
Oil Capacity (L)1.1
Tank (L)25
CV at 3000 rpm16
Autonomy at 100% load (h)7.1
Sound level dB (A) at 7 meters72
StartManual / Electrical
AVRYes
Voltage regulationInverter
Length mm700
Width mm570
Height mm580
Gross weight kg91
Net weight kg87

Data sheets and documentation

Specifications

Monophasé / TriphaséMonophasé, Triphasé
