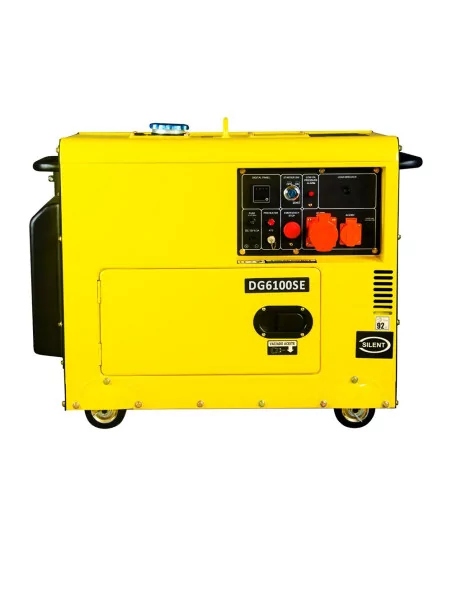

Soundproof 5.5kW mono generator DG-6100SE

Wattuneed

1 486,00 € tax incl.

5.5kW single-phase electric starter diesel generator.

We provide the necessary wiring to drive the start-up of the group with our hybrid inverters equipped with a relay, thus enabling the automation of the ignition of the latter.

More details

More info

DG-6100SE

5.5kW single-phase electric starter diesel generator.

We provide the necessary wiring to drive the start-up of the group with our hybrid inverters equipped with a relay, thus enabling the automation of the ignition of the latter.

NOMINAL POWER5/6.25KVA
POWER MAX5.5/7Kva
FREQUENCY50Hz
VOLTAGE (V)230
AMPERAGE (A)24
SOCKETS1x16A / 1x32A
CONTROLLERLED3
RESERVOIR (L)10
AUTONOMY 100%12h
SOUND LEVEL -7m80dB
OUTPUT INTENSITY 12V (A)8.3Amp
BATTERY (Ah)36
TYPE ENGINED400
PUISS MAX (CV / 3000rpm10
STARTManual / Electric
CYLINDRÉE (cc)418
OIL CAPACITY1.65
GENERATOR5KW190L-140
NOMINAL POWER5Kw
COS phi0.8
VOLTAGE REGULATIONAVR/with Brush
NET WEIGHT93kg
NET WEIGHT108kg
NET DIMENSIONS (mm)720x480x600
GROSS DIMENSIONS (mm)740x500x640

Data sheets and documentation

Specifications

Monophasé / TriphaséMonophasé
