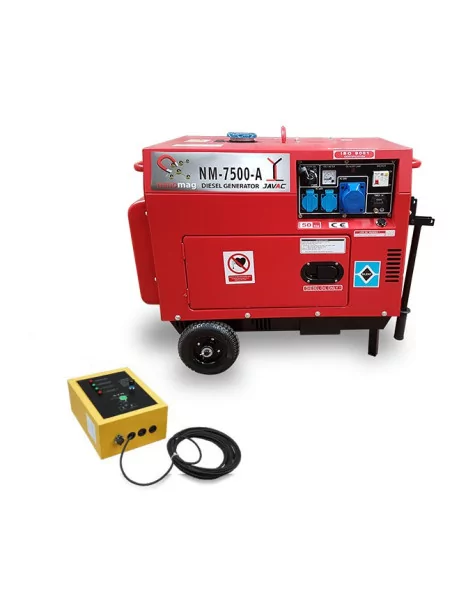

Kit NanoMag 3000 tpm - 6 KW with automatic start system

Nanomag

4 069,23 € tax incl.

Options

6 KW Diesel power generators JAVAC kit with a capacity of 7.5 KVA. Air-cooled.

Please select a model : NM-7500-A/ATS or NM-7500-B/ATS.

Available on order only

More details

More info

" NANO-MAG generators kit with automatic start system"



Nanomag

Advantage

  • Light weight and small

Up to 30 % lighter and smaller than the average of generators.



  • Low maintenance

The structure and the electrical components of the generator have been simplified , making it more reliable. Maintenance is easier and less often necessary.

  • High electrical performance



Coffret ATS





ATS box

With the ATS box, the generator has an automatic starting system




















Technical specification :


type

NM-7500A/ATS

NM-7500B/ATS

Tension

230 volt mono 50 Hz

230 mono + 3 x 400 volt 50 HZ

Application

back-up power

back-up power

Fuse

25 Amp (mono)

14 Amp (triph)

Efficiency

100%

Electricity max.

200%

Power

7.5 KVA

Max. Power

8.0 KVA

KW

6.0 KW

Speed

3000 tpm

Welding / inverter

yes (200 A.)

yes (250 A.)

Alternator

Nanomag II generation

Level of noise

72 dBa (7 meters)

Dimensions  mm

720x480x645

Tank

5,5 l.

Engine power

9.8 CV diesel YAMAZAKI (Japon)

Engine

single cylinder 4-stroke diesel

Cooling

Air-cooling

Injection

Direct injection

Engine capacity

418 cc

Compression

20/1

Start system

Electric with battery

Hour counter

Yes, standard

Oil Alert

Yes, standard

Weight

176 kg

176 kg

Warranty

1 year or 500 hours
