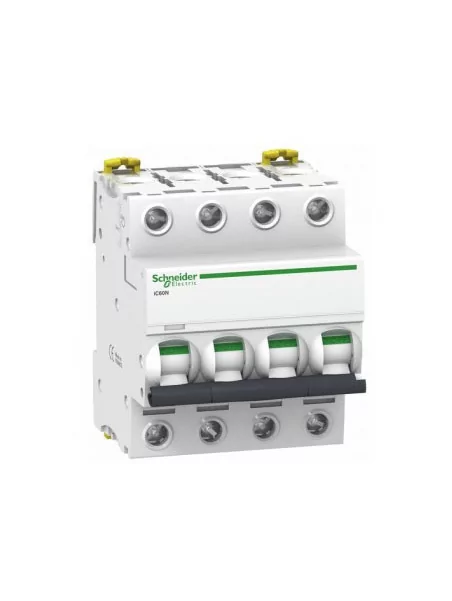

Schneider Breaker tetra 50A View full size

Schneider Breaker tetra 50A

Schneider Electric

183,68 € tax incl.

Schneider - Hager breaker : 50A
pole
Logo schneider

More details

More info

" Schneider Breaker tetra 50A "

Disjoncteur

Features

These modular circuit breakers protect your electrical installation against overloads or short circuits.
They are perfect for residential applications.

  • Pole : 4P
  • Current : from 50A
  • Network type : AC
  • Trip unit technology: Thermal-magnetic
  • Curve code C
  • Breaking capacity :
    3000 A conforming to IEC 60898-1 - 400 V AC 50/60 Hz
    3000 A Icn conforming to EN 60898-1 - 400 V AC 50/60 Hz


Technical characteristics

Calibre50A
Network frequency50/60 Hz
[Ue] rated operational voltage400 V CA 50/60 Hz
Magnetic tripping limit5...10 x In
Limitation class3 conforming to EN 60898-1
Control typeToggle
Local signallingON/OFF indication
Mounting modeClip-on
Mounting supportDIN Rail
Comb busbar distribution block compatibilityBiconnect on the underside
9 mm pitches8
Dimensions : H x W x D85 x 72 x 75 mm
Product weight0.45 kg
ColorBlanc
Mechanical durability20000 cycle
Electrical durability10000 cycle conforme à EN 60898-1 CA 50/60 Hz
Connections - terminalsTunnel type terminals on downstream side for rigid cable(s) <= 25 mm² max
Tunnel type terminals on upstream side for rigid cable(s) <= 25 mm² max
Tunnel type terminals on downstream side for flexible cable(s) <= 35 mm² max
Tunnel type terminals on upstream side for flexible cable(s) <= 35 mm² max
Tightening torque3.5 N.m


Specifications

Type de matériel électriqueDisjoncteur
