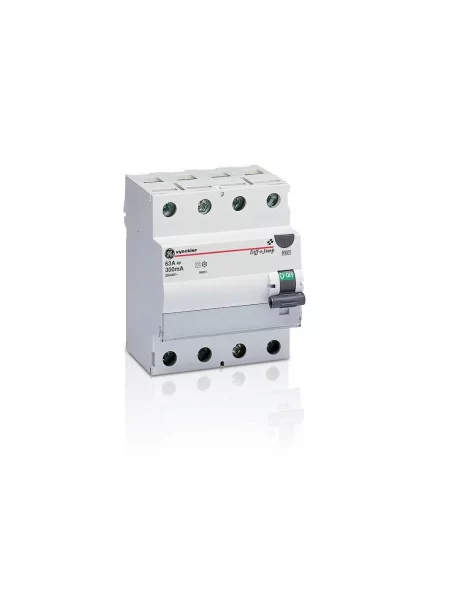

Differential switch type A 4P 40A 300ma

Differential switch type A 4P 40A 300ma View full size

Differential switches are devices that are placed in front of them and protect against leakage currents to earth unacceptable

More info

More details

82,00 €

Add to cart

By buying this product you can collect up to 8 loyalty points. Your cart will total 8 points that can be converted into a voucher of 2,40 €.


More info

Differential switch type A 4P 40A 300ma



Function
Differential switches are devices that are placed in front of them and protect against leakage currents to earth unacceptable. They protect people against electric shock.

Operation
In case of a leakage current with a residual pulsating direct current, an imbalance appears in the primary coil of the toroid, thereby generating a residual magnetic field in the core. This residual magnetic field in turn generates a voltage and a current in the secondary coil which solicits over. The relay in turn solicits the release device and open the contacts under spring pressure.









Performances

  • Type A; Type AS
  • In nominal current (A) 16, 25, 40, 63, 80, 100
  • Fault current (mA) 10, 30, 100, 300, 500, 1000
  • Voltage Rating Un 2P: 230 V; 4P: 230/400 V
  • Minimum operating voltage UBmin 2P: 127 V; 4P: 190 V
  • Lifetime mechanical / electrical 20000/10000
  • IEC following Tropicalisation 60068-2-28/2-30 en DIN 40046 95%HR sous 55°C
  • Range, max. son flexible / rigid 35-50 mm ²
  • Pôles 2, 4
  • Resistance to shock waves Type A: 250A 8/20 .mu.s; 200A 0,5?s - 100kHz; Type S: 3000A 8/20 .mu.s
  • Ambient temperature -25 à 55 °C
  • Weight 2P: 220 g; 4P: 385 g



Switching characteristics

  • According to EN 61008
  • Rated current on / off switching Im = 500A
  • Rated residual current on / off switching I?m?500A for 16 to 40A; I?m = 800A to 100A at 63
  • Protection against short-circuit protected by fuse = 10000A Inc at 230 / 400V 80A fuse gG
  • Withstands I²t A²s 22500 - 3000A
  • All Diff-o-Jump appliances match these values. Only for devices up to 40A values are screen printed. Depending on RGIE these values should not appear on appliances over 40A.


components

  • Input terminal
  • Switch: fixed and moving contact
  • Torus with primary and secondary windings
  • Relay
  • Output terminal
  • Command button: with freewheel mechanism solicits switch
  • Pushbutton test



Extensions

  • Auxiliary contacts
  • Module Remote Trigger
  • Coil undervoltage
  • Door contact
  • Motor control
  • Busbar systems




Normalization

The switch differential (Diff-o-Jump Type A and Type S) are complied with NBN EN 61008 and NBN 819 and received on the basis of these standards approval CEBEC. NBN standards in a differential switch shall be called circuit breaker earth differential device. Diff-o-Jump meets the international standards IEC 1008 and EN61008.











Specifications

Type de matériel électriqueInterrupteur
