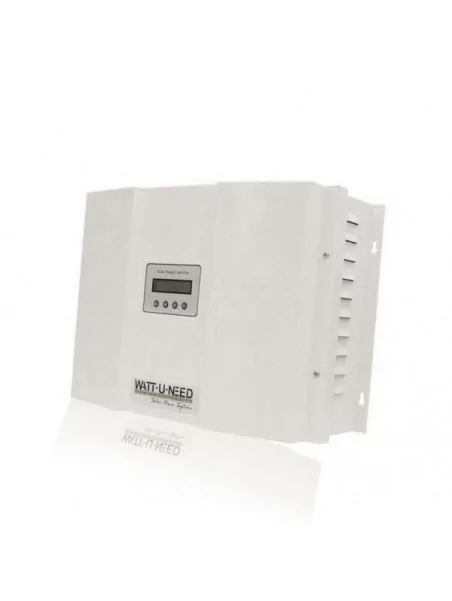

Solar regulator MPPT 40A 48V 2000W

Wattuneed

578,00 € tax incl.

MPPT solar charge controller in destocking

40A at 48V

Nominal input power : 2Kw

Input voltage between 48 and 120 VDC

-40 %

More details

More info

" Solar charge controller with MPPT function "



MPPT 40A is especially suitable to use with solar panels normally provided for on grid systems. The sophisticated algorithm of the "MPP Tracking" can constantly have the maximum power output of the solar module. Thanks to its advanced technology, MPPT2010 ensures maximum power in all operating conditions, a professional battery protection and modern design.



- Configurable for different kinds of batteries

- MPPT technology, up to 30% more yield compared to a conventional regulator

- LCD display : visualize the loading information and configure the controller

- Integrated protections: batteries charge and PV inversions, deep discharge and battery surgarge



  • Modules power : 2Kw
  • Batteries voltage : 48V
  • Load current : 40A
  • DC input voltage : 48V-120V
  • Floating voltage : 56V
  • Overcurrent protection : 57.6V
  • Cooling : FAN
  • Temp : -20 - + 55 ° C
  • Dimensions (cm) : 33X25X12
  • Weight (kg) : 5

Specifications

Voltage48V
MPPT/PWMMPPT
Maximum PV input voltage2000 W
