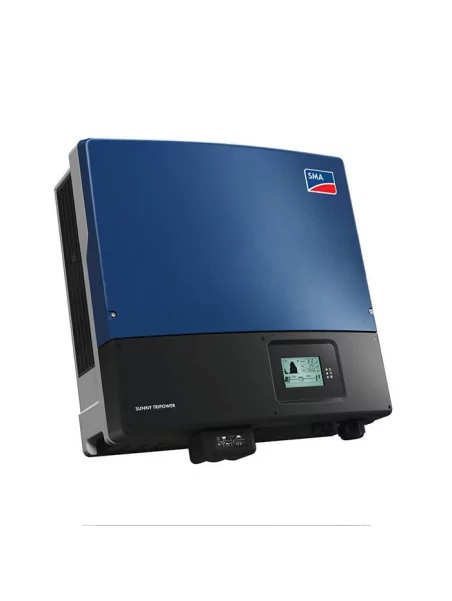

SMA Sunny Tripower 10000TL-10 STP

SMA

2 992,16 € tax incl.

Three-phase inverter SMA Sunny Tripower 10000TL-10.
Adapted to almost all modular configurations with Optiflex with two entrances MPP technology and a wide range of input voltage.

Used item.



This product is no longer available for sale.
You can find its equivalent by clicking here.

















More details

More info



Description:

SMA STP 17000TL

Economic

  • Performance group up to 98.2%
  • Regulation MPP OptiTrac Global Peak of ADM that allows a search of optimized maximum power point
  • Bluetooth®


High-performance

  • Optiprotect for triple security: fuse electronic string, Detection of the malfunction of the strings to self-learning, lightning arrester integrated DC (type II)


Flexible

  • Up to 1 000 V DC input voltage
  • Integrated network management
  • Flexible installation thanks to the Optiflex sizing


Simple to use

  • Three-phase injection
  • Connecting the cables without tool
  • DC SUNCLIX connection system
  • Easy connection to access area







Technical features:


 Sunny Tripower10000TL-10
INPUT (DC)
Power DC Max (for cos? = 1).10200 W
Input voltage max.1000 V
MPP voltage range / input rated voltage320 V - 800 V / 600 V
Input min voltage / start150 V / 188 V
Input maximum input A / input B22A / 11A
Input per input string A / b33A / 12.5 A
Number of entries independent MPP / strings by entry MPP2 / HAS: 4; B: 1
OUTPUT (AC)
Assigned (at 230 V, 50 Hz) power10000 W
Apparent power AC max.10000 GOES
Rated voltage AC3 / N / PE. 220 / 380 V
3 / N / PE. 230 / 400 V
3 / N / PE. 240 / 415 V
Nominal AC voltage range160 v to 280 V
AC mains frequency / range50 Hz, 60 Hz / 5 Hz + -6 Hz...
Frequency / voltage of system assigned50 Hz / 230 V
Output current max.16A
Power at rated power factor1
Adjustable phase shift factorinductive 0... capacitive 0
Phases of injection / connection3 / 3
PERFORMANCE
Maximum performance / European performance98.1% / 97.7%
PROTECTION DEVICES
Disconnection device side DCYes
The ground fault surveillance / networkYes / Yes
DC polarity protection / resistance to AC circuits / galvanic separationYes / Yes / -.
Monitoring unit of all current-sensitive fault currentYes
(According to IEC 62103) protection class / category of overvoltage (according to IEC 60664-1)I / III
GENERAL DATA
Dimensions (L / H / P)665 / 690 / 265 mm
(26.2 / 27,2 / 10.4 inches)
Weight59 kg / (130,17 lb)
Operating temperature range-25 ° C... + 60 ° C
(- 13 ° F... + 140 ° F)
Noise (typical)51 dB (A)
Autocon - summons (night)1 W
Topology / principle of coolingTransformerless / OptiCool
Protection (according to IEC 60529)IP65
Climate category (according to IEC 60721-3-4)4K4H
Allowable maximum value of relative humidity (without condensation)100%
EQUIPMENT
Connection DC / AC connectionSUNCLIX / spring-loaded Terminal
ScreenChart
Interface: RS485 /.Bluetooth / WebconnectOptional / Yes / optional
Multifunction relay / Power Control ModuleOptional
Warranty: 5 / 10 / 15 / 20 / 25 yearsYes / optional / optional / optional / option
Certifications and approvals (others on request)ACE 4777, BDEW 2008, C10 / 11:2012, THE CEI 0-16, 0-21, 504381 CIS, G59/3, IEC 61727 (MEA/PEA), IEC 62109-1/2, NEN IN 50438, PPC, PPDS, 1699 RD, RD 661/2007, SI4777, UTE C15-712-1, VDE 0126-1-1, VDE-AR-N 4105
Type designationSTP 10000TL-10







Specifications

Maximum PV input voltage1000 V
Power10200 VA
Monophasé / TriphaséTriphasé
Nombre de MPPT4 ou 1
